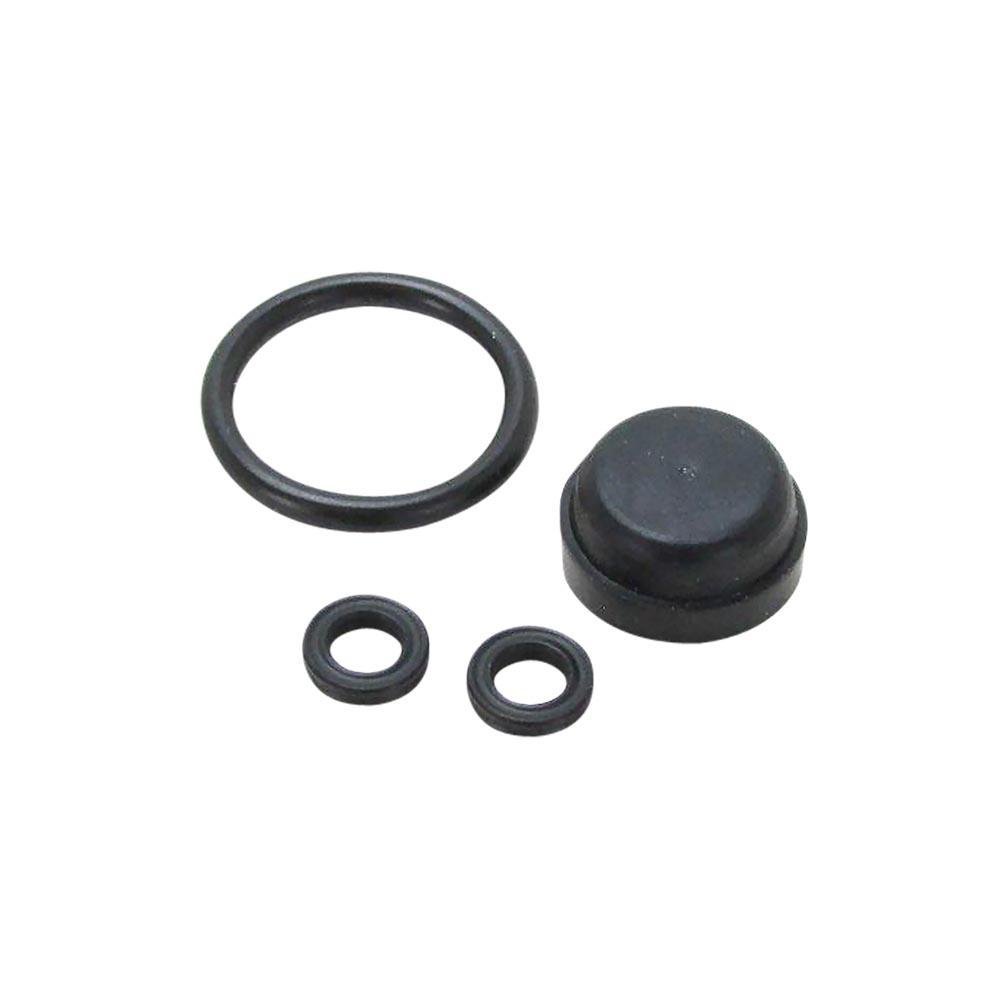

K0228 Diverter Seals

$ 16.45
$ 16.45
Shipping calculated at checkout.
PayPal 'Pay in 4' interest-free bi-weekly payments over 6-weeks for orders over $30
PayPal 'Pay Monthly' up to 24-months for orders over $49

May need replaced if, after viewing the video,

  • the diverter will not drop
  • water comes from both the spout and wand at the same time
  • water leaks from the small hole where the diverter rod enters the spout
  • water leaks at the base of the spout

See the full K31088 Diverter Assembly

Instructions - M76

Instructions - M2000

M31088 Instructions

0228 x s0228 x 228 seal 542 diverter stuck diverter stick diverter sticks diverter sticking

Customer Reviews

Based on 29 reviews
83%
(24)
0%
(0)
3%
(1)
3%
(1)
10%
(3)
K
Kenneth H. (Eufaula, AL, US)
Review: Diverter Seals did not solve the problem

I was disappointed, because I changed the seals in our Dishmaster 2000 and I still have the problem where the diverter does not go back down after shutting off the water. Do you have any suggestions on how to remedy this problem?

Sorry you're having trouble. You've likely got some buildup of minerals on your diverter rod, so even fresh seals won't want to slide on it properly. Polish the rod with some very fine (0000 grade) steel wool and then lubricate both the rod and the seals with silicone plumbers grease. That should have you back in action.

B
Bob W. (San Francisco, CA, US)
I like the extra height

I have had my Faucet for many years. I have rebuilt it, repaired it, and updated it. It looks good in my old kitchen. The customer service is great and shipping is quick. Granted, repair parts seem to be expensive but that is to be expected as I'm sure they're not manufacturing tens of thousands at a time. I'm fine with that.

I purchased the 4" taller spout. I wish I had done that years ago. It makes things so much easier when cleaning or filling stock pots. I would like to say it was just this year that I got it but time flies and I think it was last year. I'm not going to take the time to look right now.

Anyway, the diverter was not dropping when the water was turned off. I took it apart to clean. Sometimes this needs to be done just from interaction with the water. I have soft water on the hot side but regular water on the cold.

Upon removal of the diverter, I noticed that one of the small seals at the top was slightly deformed, causing the rod to bind. I suspect that the part was misformed at production rather than improper installation as it isn't too difficult to put the seals in place. I opted to reverse the installation and use some plumbing lubricant. It worked briefly but is not dropping again.

What I'm not happy about is what I have to purchase to repair this. To get the piece at the top of the spring on the rod, I have to buy the diverter assembly which includes the o-ring for the spout to body. It does not include the two seals at the top of the diverter. To get the two seals at the top I have to purchase them with the 0-ring and the lower seal that also come with the diverter assembly. Changing the diverter without replacing those seals at the same time is ludicrous. So, in essence, I have to spend $53 plus tax and shipping to replace a faulty seal. By purchasing both kits with the redundant parts, it allows me to do the job properly so I don't have to do it again. In this case it is a extra $36.40 to get the part at the top of the diverter rod. Also, I will have good duplicate parts, new and used, left over. I will probably never need them. The whole spout is barely $40 more. Why doesn't that part come with the seal kit?

The K0228 Diverter Seals kit does not include the retainer because it is a seals-only kit. However, the K0228 Diverter Seals Kit, at $16.45, is the proper kit to have ordered to make the repair you describe. Robert, we encourage you once again to contact us before you order parts online so you can order only what you need at the minimum cost.

N
Newell B. (Seattle, WA, US)
Dishmaster service

Parts were delivered as quoted.
All is good
